Phanteks NV5S Black
Description:

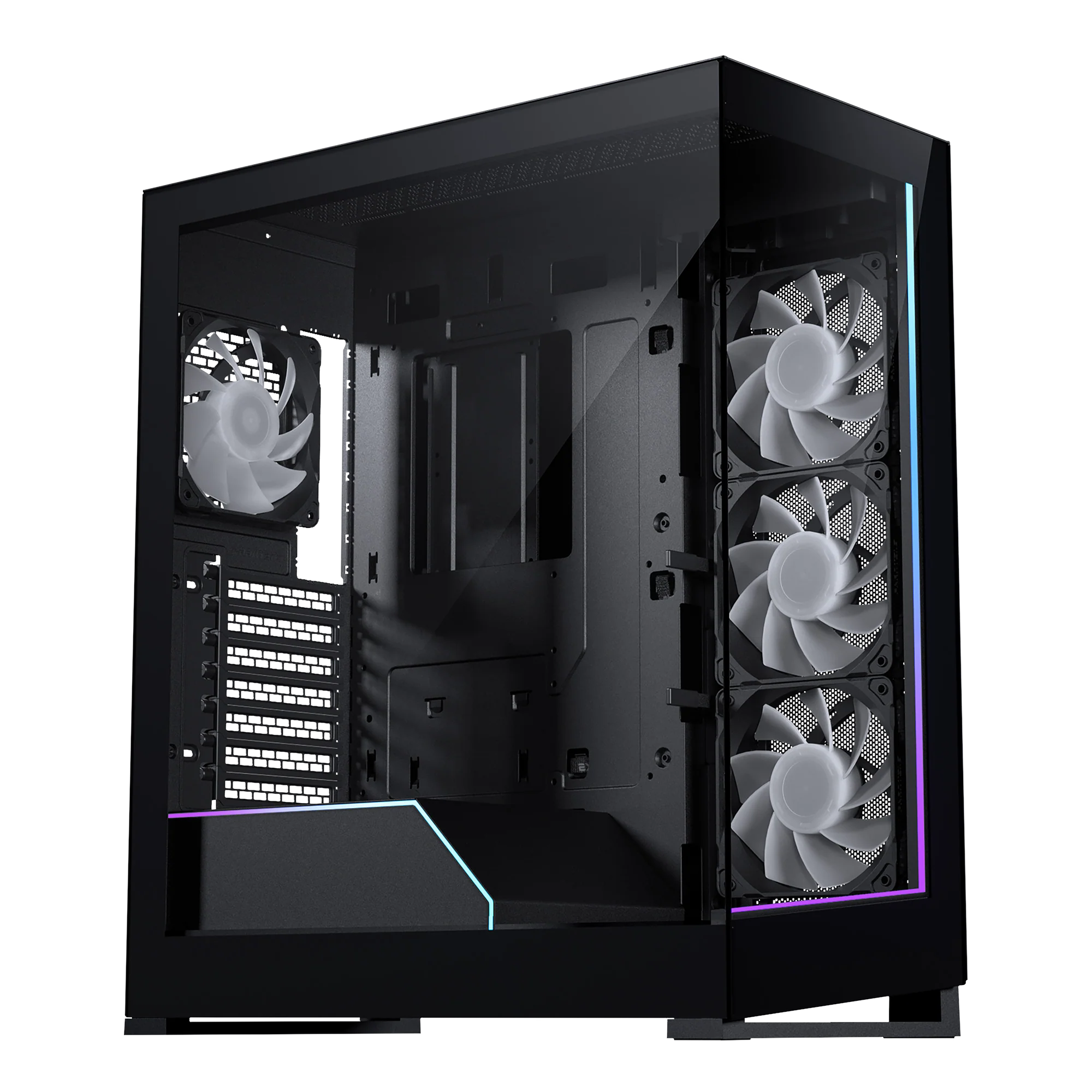

Meet the NV5S mid-tower chassis, featuring a stunning near-seamless glass view and
support for 7 x 120 mm fans and dedicated space for a 360 radiator in the top.
Its PSU cover opens for easy cable management, and its DRGB lighting system is
customizable and easy to sync. With its sleek design and convenient features, the NV5S is the perfect choice for a high-performance PC build that looks as good as it performs

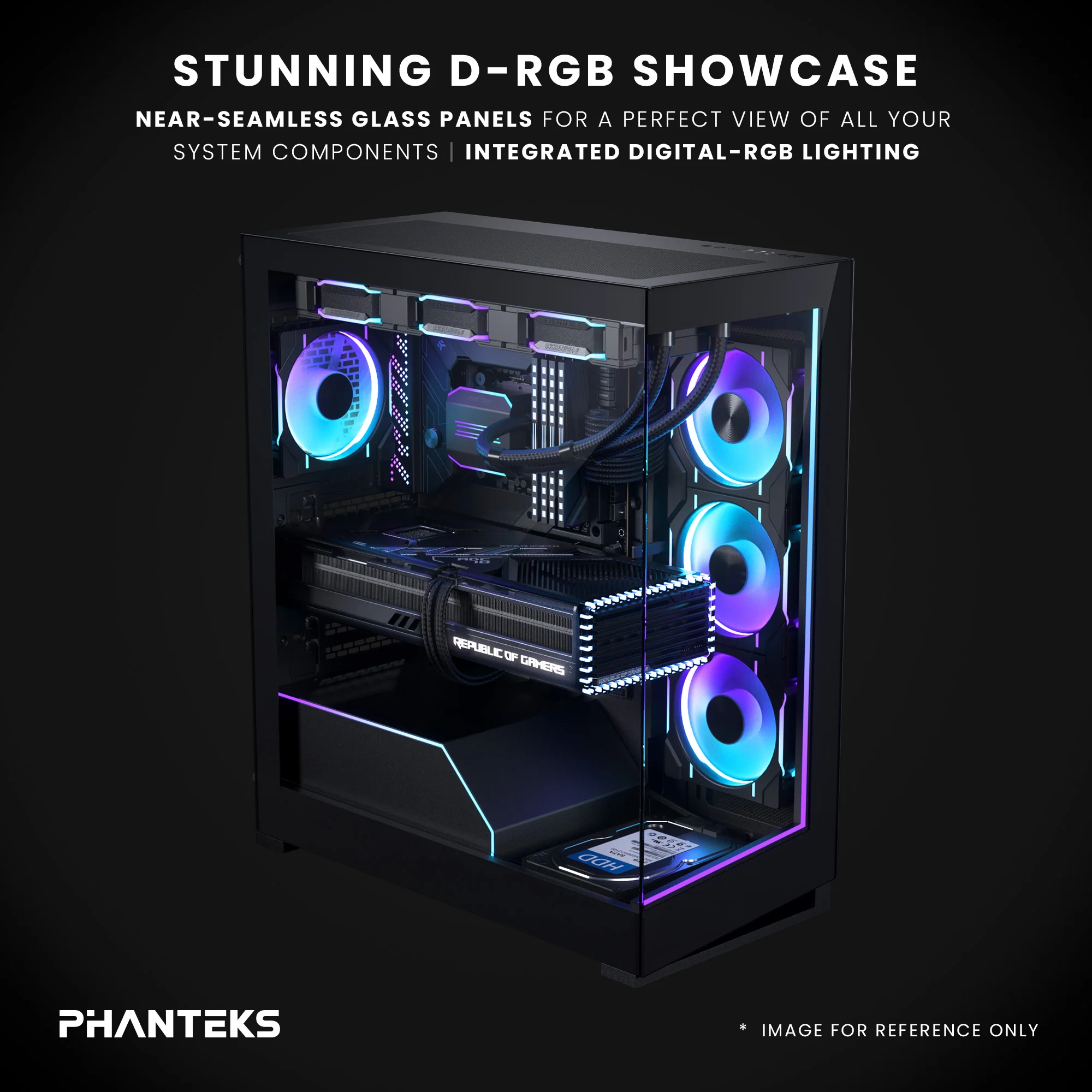

• Near-seamless glass panels for a perfect view of all your system components

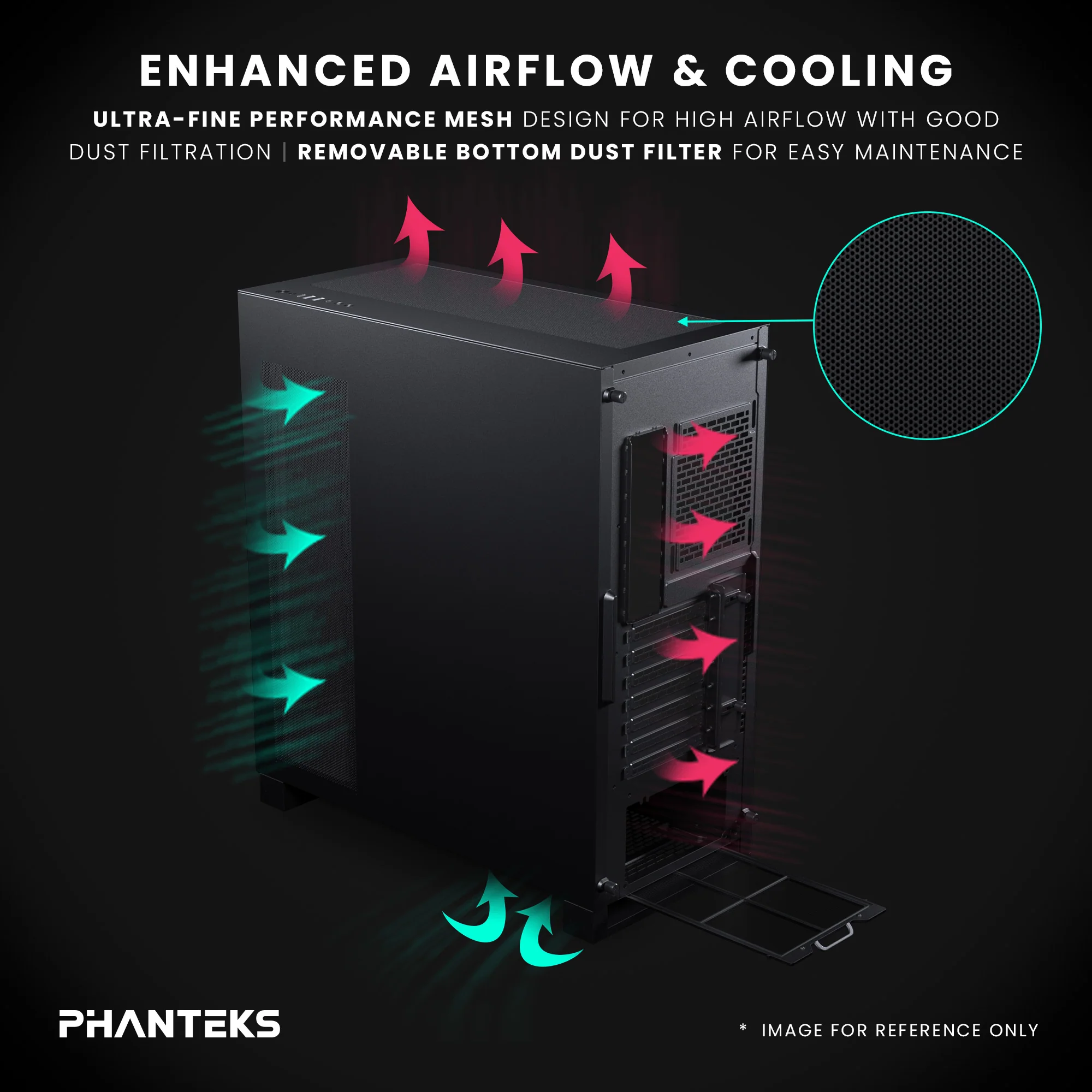

• Ultra-fine performance mesh design for high airflow with good dust filtration

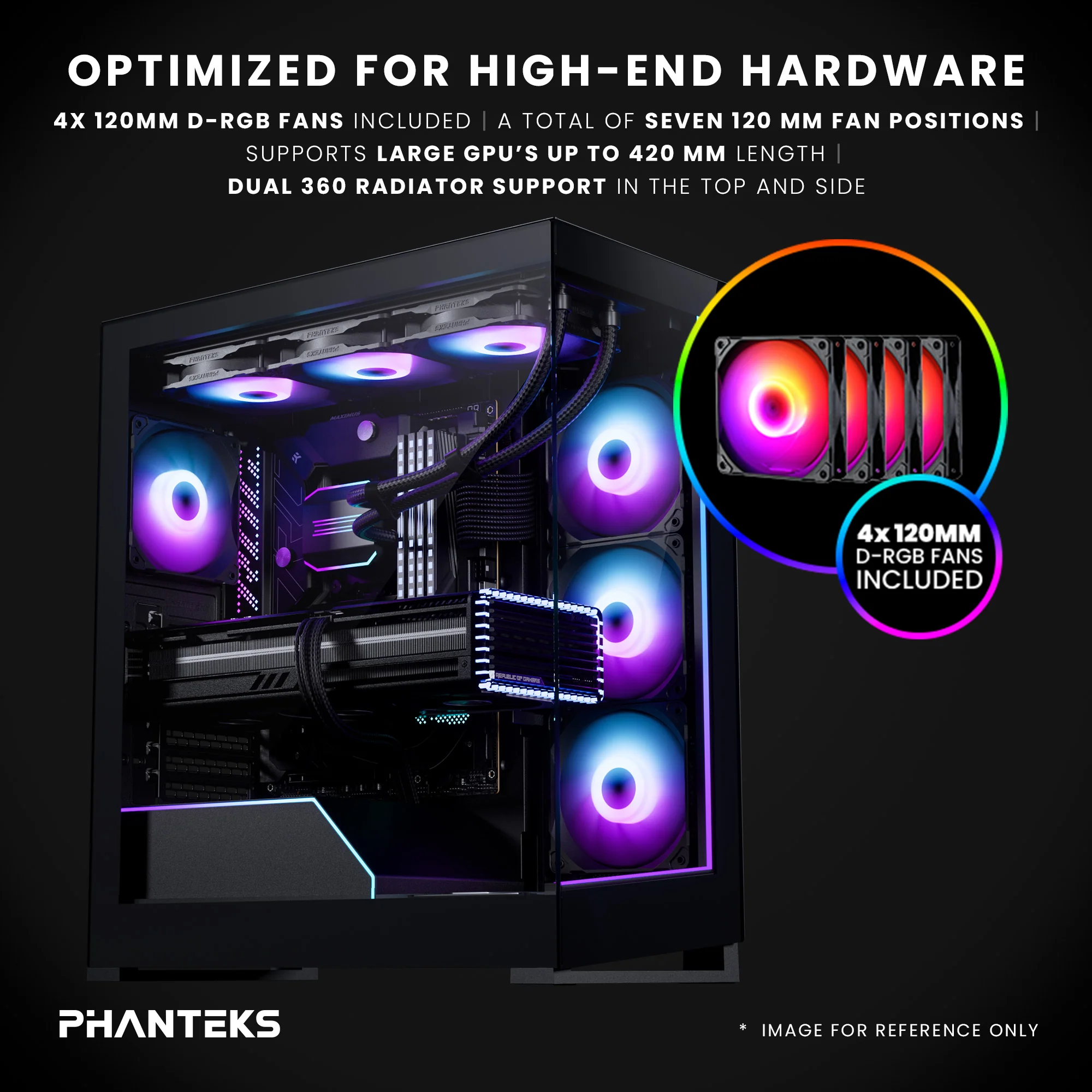

• A total of seven 120 mm fan positions for high end cooling performance

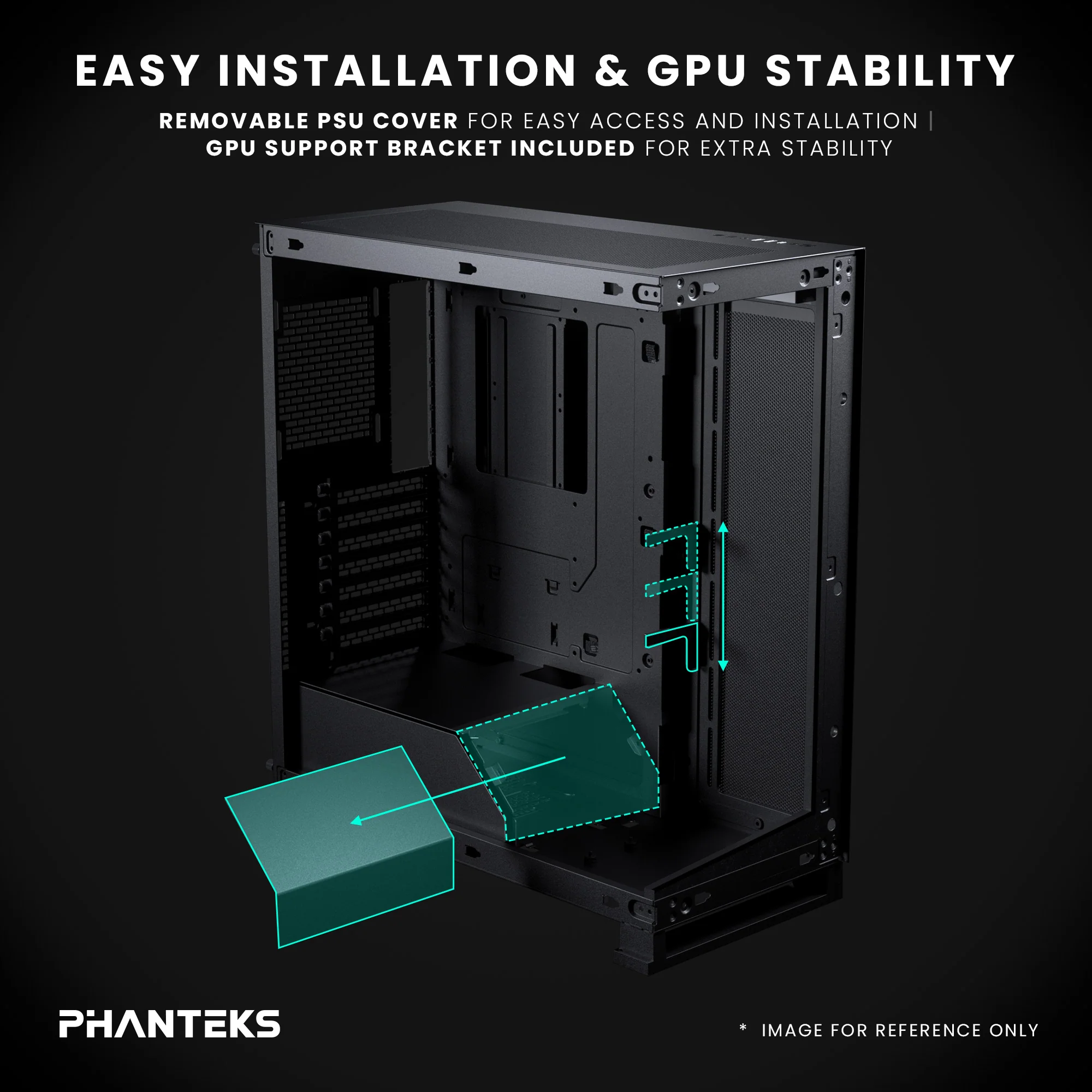

• Removable PSU cover for easy access and installation
• Integrated Digital-RGB lighting with software free controller
• GPU support bracket included
|
Case Specifications |
|
|
|
|
||
|
Dimension |
218 x 450 x 505 mm / 8.6 x 17.7 x 19.9 in (WxDxH) |
|
|
Form Factor |
MidTower |
|
|
Material(s) |
Steel Chassis, Tempered Glass |
|
|
Motherboard Support |
ATX, micro-ATX, mini-ITX, E-ATX (Up to 280mm with GPU support bracket) |
|
|
Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, Reset Button, D-RGB Mode, D-RGB Color |
|
|
Connectors |
Power Switch, D-RGB, HD-audio, USB 3.0, SATA Power, Reset, USB 3.2 GEN 2 Type-C |
|
|
Window |
Yes, Front and Side Tempered Glass |
|
|
|
||
|
Expansion & Drive Bays |
||
|
|
||
|
Expansion slots |
7 |
|
|
Vertical GPU support |
Yes, with optional bracket PH-VGPUKT4.0_03 |
|
|

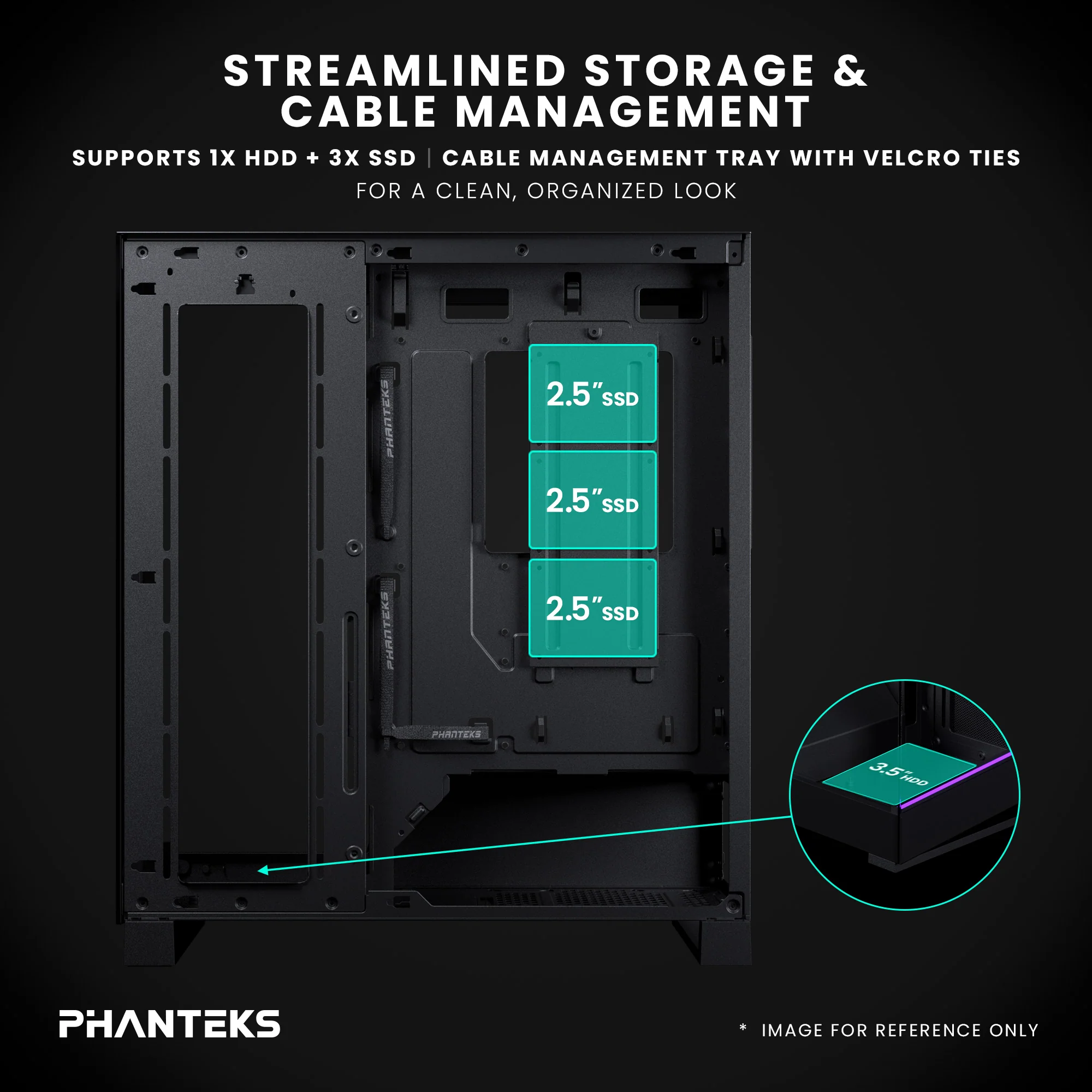

Internal 3.5” |
1 |
|
|
Internal 2.5" |
3 |
|
|
D-RGB Controller output |
7A |
|
|
|
||
|
Cooling |
120mm fan |
140mm fan |
|
|
||
|
Side |
3x (included) |
- |
|
Top |
3x |
- |
|
Rear |
1x (included) |
- |
|
Bottom |
- |
- |
|
|
||
|
Liquid Cooling |
120mm radiator |
140mm radiator |
|
|
||
|
Side |
Up to 360* (*with vertical GPU only) |
- |
|
Top |
Up to 360 |
- |
|
Rear |
120 |
- |
|
Bottom |
- |
- |
|
|
||
|
Clearance |
|
|
|
|
||
|
Graphic card length |
430 mm |
|
|
CPU cooler height |
170mm |
|
|
PSU length |
195mm |
|
|
Side 360 Radiator |
120x400x60 mm |
|
|
Top 360 Radiator |
120x400x60 mm |
|
|
Rear 120 Radiator |
120x180 mm |
|
|
|
|
|
|
|
||
|
|
||
|
Warranty |
|
|
|
Length |
5 years |
|
|
|
|
|
|
Scope of delivery |
|
|
|
NV5S Chassis |
|
|
|
D-RGB 120 Fans |
4x |
|
|
D-RGB Controller |
1x |
|
|
Triple SSD Bracket |
1x |
|
|
GPU Support Bracket |
1x |
|
|
Accessory Box |
1x |
|
|
MB/SSD Screw |
|
|
|
Thumb Screw |
|
|
|
HDD Screw |
|
|
|
Standoff Removal Tool |
|
|
|
MB stand-off |
|
|
|
PSU Screw |
|
|
